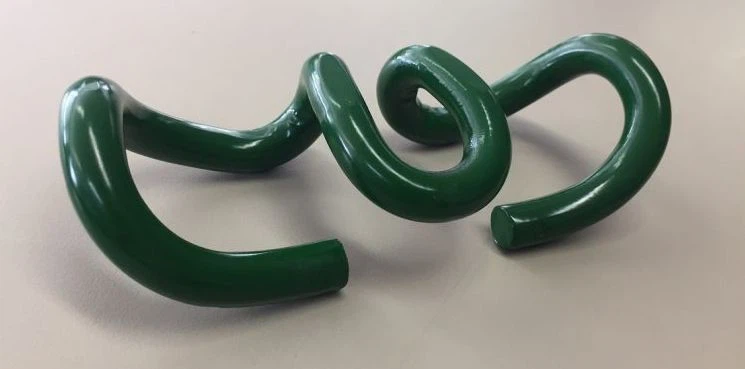

Rail Clip SKL14

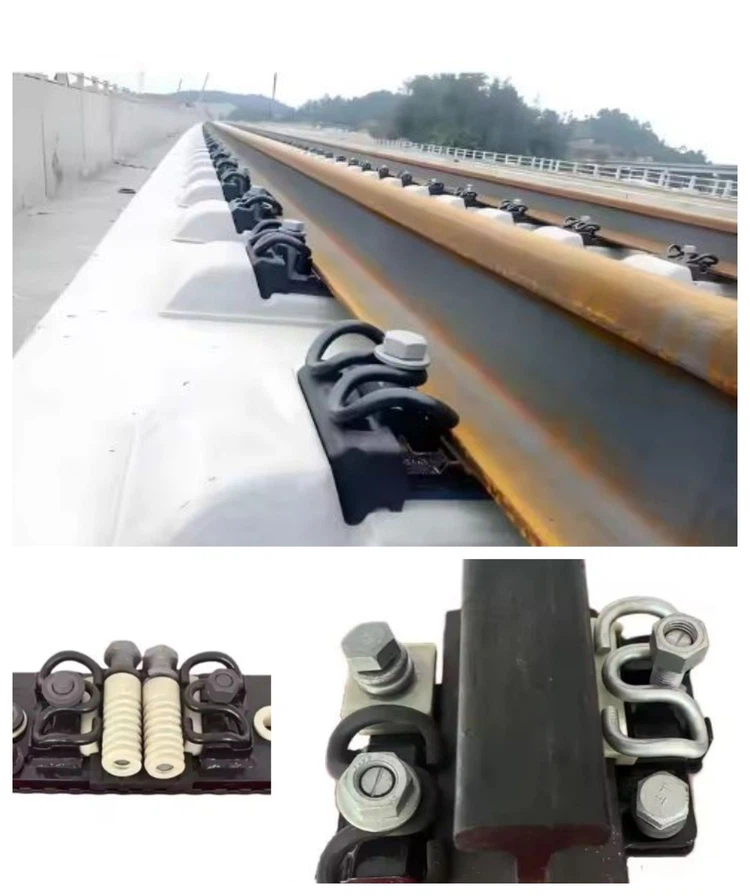

The SKL14 spring clip rail fastening system is an elastic fastener device used to fix railway tracks. It is mainly composed of SKL14 spring clips, gauge baffles, insulating gaskets and anchor bolts. The system generates buckling pressure through the elastic deformation of the spring clips, firmly fixes the rails on the sleepers or track plates, and allows limited longitudinal displacement of the rails due to temperature changes. Its structural design can effectively maintain the track geometry and disperse the dynamic load during train operation. It is suitable for sections such as high-speed railways and heavy-load lines that require high track stability. It is an important component to ensure the smoothness of railway lines and driving safety.

Components of SKL14 Rail Fastening System:

A) Tension clamp Skl14 -2 units
B) Screw spike Ss 35/Uls 7 -2 units
C) Angled Guide Plate Wfp-14K12 -2units
D) Plastic dowel -2 units
E) Rail Pad Zw686a- 1 units
F) Washer-2 units

In the era of interconnected rail transit, GNEE RAIL escorts global railway construction with professional technology and excellent quality. As a foreign trade company with many years of industry accumulation, we focus on the research and development and manufacturing of railway fastener systems. Our product lines cover diversified application scenarios such as high-speed railways, urban rails, and heavy-duty transportation, providing safe and reliable connection guarantees for rail transit projects around the world.
